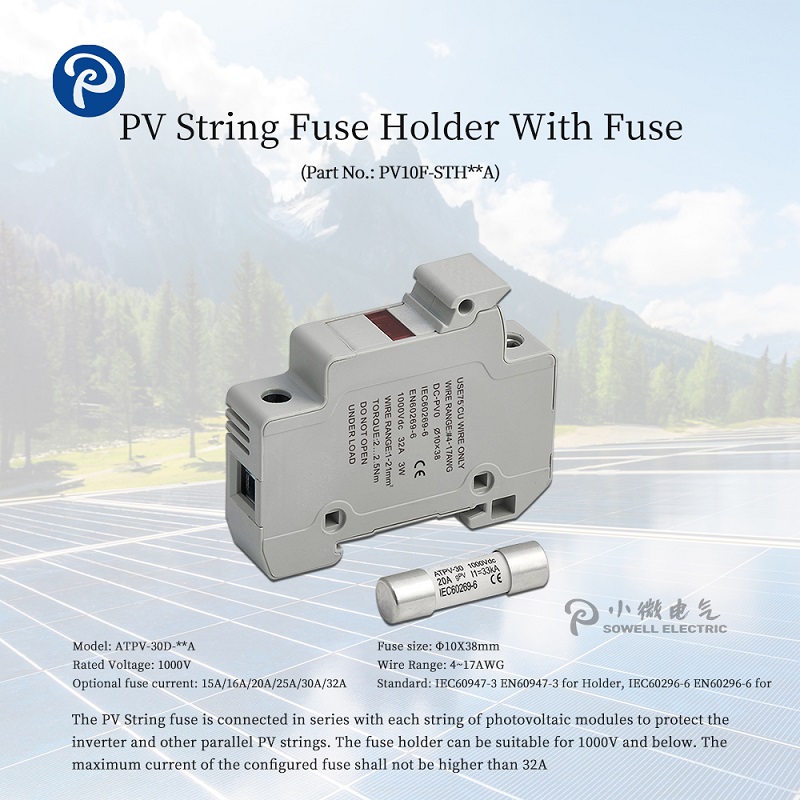

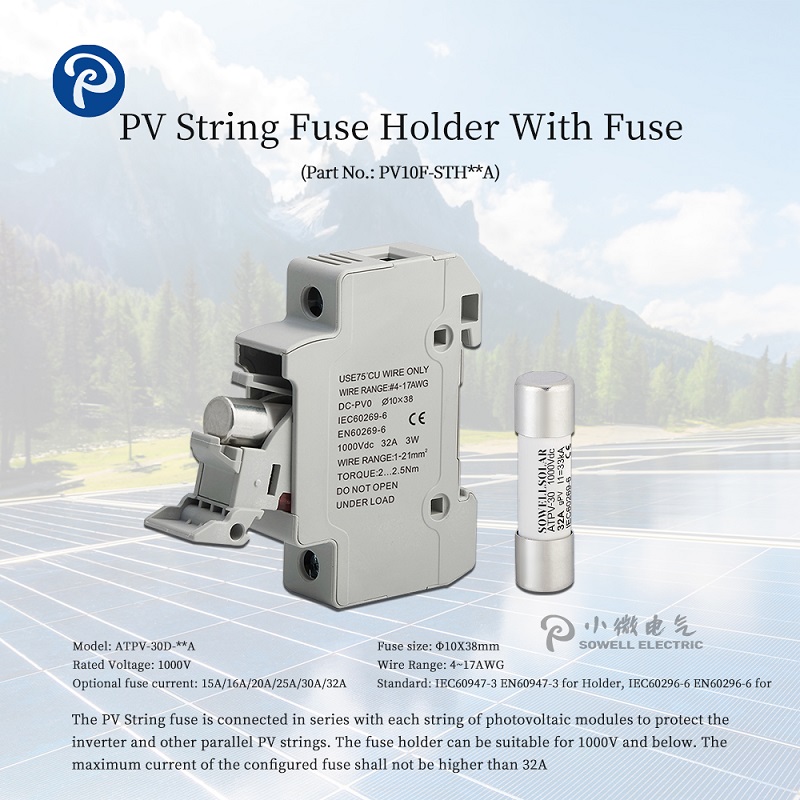

PV STRING FUSE HOLDER WITH FUSE
Part No.: PV10F-STH**A
Model: ATPV-30D-**A
Rated Voltage: 1000V
Optional fuse current: 15A/16A/20A/25A/30A/32A
Fuse size: Φ10X38mm
Wire Range: 4~17AWG
Standard: IEC60947-3 EN60947-3 for Holder, IEC60296-6 EN60296-6 for Fuse
The PV String fuse is connected in series with each string of photovoltaic modules to protect the inverter and other parallel PV strings. The fuse holder can be suitable for 1000V and below. The maximum current of the configured fuse shall not be higher than 32A
