EN50618 H1Z2Z2-K 1x4mm2 1500VDC

Item NO.:PV-H1-40B-40R

Min.Order Quantity: to be discussed
Port:Ningbo/Shanghai
Payment Terms:TT/LC/DP/DA/Paypal/Visa

Inquiry

1500V Solar PV Cable H1Z2Z2-K 1X4,0mm2

We can supply all kinds of package solar cable 4mm2, inclouding 100, 250, 500, 1000 and 4000meters per roll (drum) and customized.

Application

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-com¬ponents like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.
Cable surface marking
PNTECH PV CABLE EN50618 H1Z2Z2-K 1X ** mm2 DC 1500V DO NOT DISCONNECT UNDER LOAD

Certificate

EN50618:2016 by TUV

Packing

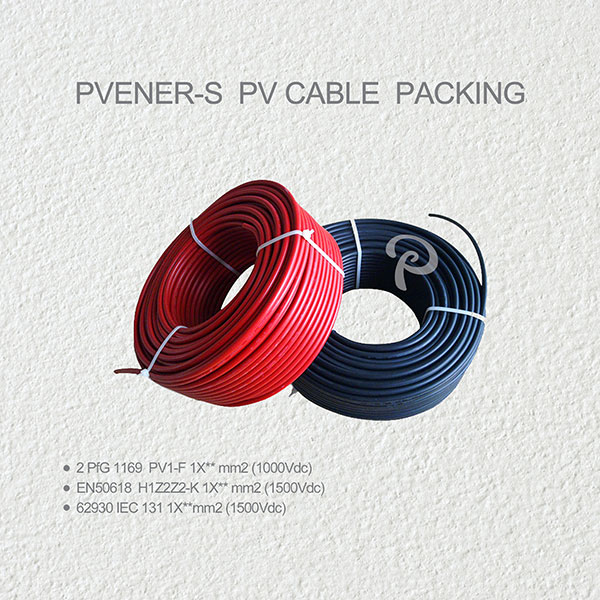

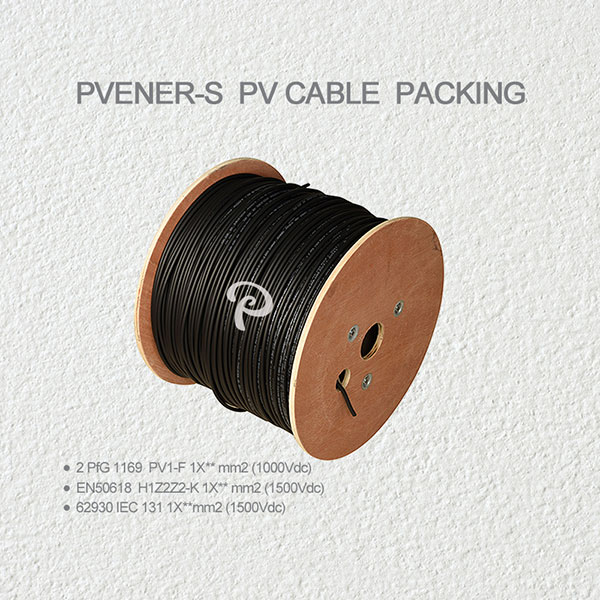

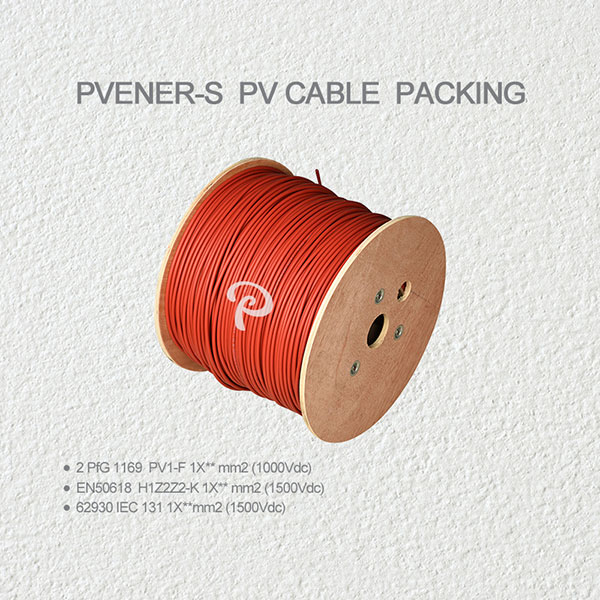

Packaging: 4mm PV cable, 100 meters/roll, 112 rolls per pallet; 500 meters/roll, 18 rolls per pallet. 20 pallets in one 20FT container. Other type can be customized

Item No.	Product Name	Model	Rated Voltage	Conductor cross section mm 2	Strand design Number x Ø mm	Conductor resistance Ω / km 20°C	Outer-Ømm	Sheath Color
PV-H1-15B	PV Cable	H1Z2Z2-K	1500VDC	1X1.5	30/0.25	13.70	4.7±0.1mm	Black
PV-H1-15R	PV Cable	H1Z2Z2-K	1500VDC	1X1.5	30/0.25	13.70	4.7±0.1mm	Red
PV-H1-25B	PV Cable	H1Z2Z2-K	1500VDC	1X2.5	49/0.25	8.21	5.3±0.1mm	Black
PV-H1-25R	PV Cable	H1Z2Z2-K	1500VDC	1X2.5	49/0.25	8.21	5.3±0.1mm	Red
PV-H1-40B	PV Cable	H1Z2Z2-K	1500VDC	1X4,0	56/0.285	5.09	5.6±0.1mm	Black
PV-H1-40R	PV Cable	H1Z2Z2-K	1500VDC	1X4.0	56/0.285	5.09	5.6±0.1mm	Red
PV-H1-60B	PV Cable	H1Z2Z2-K	1500VDC	1X6,0	84/0.285	3.39	6.1±0.1mm	Black
PV-H1-60R	PV Cable	H1Z2Z2-K	1500VDC	1X6.0	84/0.285	3.39	6.1±0.1mm	Red
PV-H1-100B	PV Cable	H1Z2Z2-K	1500VDC	1X10	77/0.4	1.95	7.3±0.1mm	Black
PV-H1-100R	PV Cable	H1Z2Z2-K	1500VDC	1X10	77/0.4	1.95	7.3±0.1mm	Red
PV-H1-160B	PV Cable	H1Z2Z2-K	1500VDC	1X16	126/0.4	1.24	9.3±0.1mm	Black
PV-H1-160R	PV Cable	H1Z2Z2-K	1500VDC	1X16	126/0.4	1.24	9.3±0.1mm	Red
PV-H1-250B	PV Cable	H1Z2Z2-K	1500VDC	1X25	196/0.4	0.795	11.2±0.1mm	Black
PV-H1-250R	PV Cable	H1Z2Z2-K	1500VDC	1X25	196/0.4	0.795	11.2±0.1mm	Red
PV-H1-350B	PV Cable	H1Z2Z3-K	1500VDC	1X35	273/0.4	0.565	12.6±0.1mm	Black
PV-H1-350R	PV Cable	H1Z2Z4-K	1500VDC	1X35	273/0.5	0.565	12.6±0.1mm	Red

Product technical data sheet

Cable design
Conductor	Tinned copper wires, according IEC 60228, Class 5
Insulation	125 ℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins
Outer jacket	125℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins
Special technology	Electron beam cross-linked
Electrical characteristics
Rated voltage U0/U	AC 1000V, DC 1500V
Temperature range	-40℃ up to +90℃
Max. temperature at conductor	120℃
Min. bending radius	5 x cable diameter
Industry Standards	EN 50618:2014
Tensile strength and elongation	according EN 60811-1-1
Cold bending	according EN 60811-1-4
Thermal endurance properties	according EN60216-2
Halogen free	according 50525-1 Annex B
Ozone resistance	according EN 50396
UV resistance	according HD 605/A1
Flame characteristics	according IEC 60332-1-2
Dimensions and specifications may be changed without prior notice.

Products line: We have 10 years' experience in production of PV cables and PV connectors. We can produce 200,000 meters of PV cables and 50,000 sets of PV connectors per day. Our standardized pallet is more suitable for global sales. Our factory not only has 6 high-speed cable production lines, but also has electronic irradiation cross-linking equipment, which is the key equipment to control the quality of the cable. Our advanced technology guarantees the production of high-quality cables.

Certificate: Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivered out. We have got TUV, UL and CE certification and all kinds of testing report, if you want please just ask us for it!
