PV Connector PV005

Item NO.:1000V-PV005

  • Min.Order Quantity: to be discussed
  • Port:Ningbo/Shanghai
  • Payment Terms:TT/LC/DP/DA/Paypal/Visa

Inquiry

Type: PV005

Product application

Rated Voltage: 1000V

Rated Current: 30A

Degree of protection (mated): IP67

Ambient temperature range: -4085

Contact resistance:<0.35mΩ

Item No.

Product Name

Model

Rated V/A

Ø range of
  cable gland

Conductor cross
  section

Terminal
  Type

Ø range of
  cable gland

1000V-PV005

PV Connector

PV005

1000V/30A

4.0-7.5mm

1.5-6mm2

A

Φ7.5

1000V-PV005-H25

PV Connector

PV005H25

1000V/30A

4.0-7.5mm

2.5mm2

B 25

Φ7.5

1000V-PV005-H40

PV Connector

PV005H40

1000V/30A

4.0-7.5mm

4.0mm2

B 40

Φ7.5

1000V-PV005-H60

PV Connector

PV005H60

1000V/30A

4.0-7.5mm

6.0mm2

B 60

Φ7.5

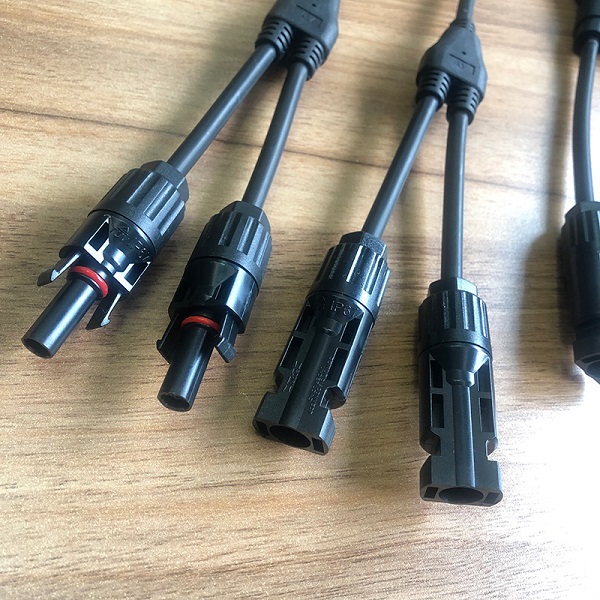

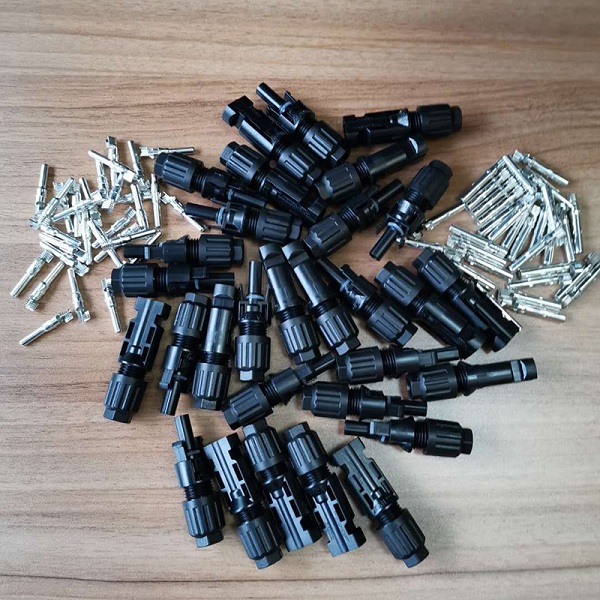

SOWELLSOLAR series PV Connector

Snap-in lock

Proven SOWELL technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector.

Tried and tested plug connectors, over 10 years of experience in the field.

Mating compatibility with MC4 connector family.

Leads made to customers specifications, see Extension Cable.


Products line


We have 10 years' experience in production of PV cables and PV connectors. We can produce 200,000 meters of PV cables and 50,000 sets of PV connectors per day. Our standardized pallet is more suitable for global sales. Our factory not only has 6 high-speed cable production lines, but also has electronic irradiation cross-linking equipment, which is the key equipment to control the quality of the cable. Our advanced technology guarantees the production of high-quality cables.
Certificate


Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivered out. We have got TUV, UL and CE certification and all kinds of testing report, if you want please just ask us for it!
